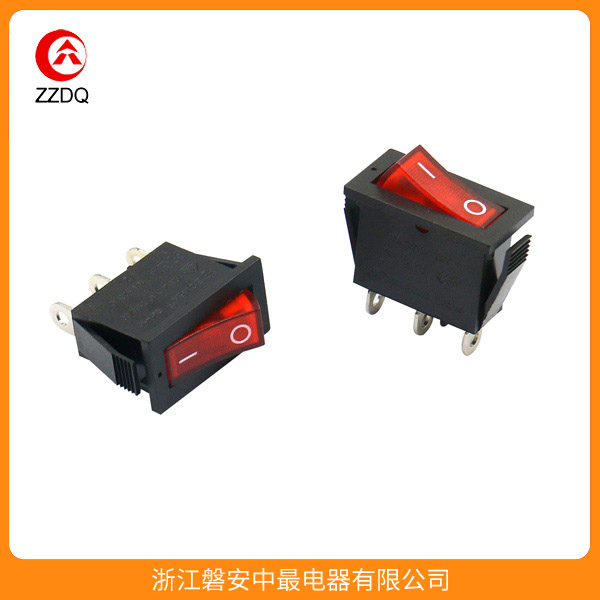

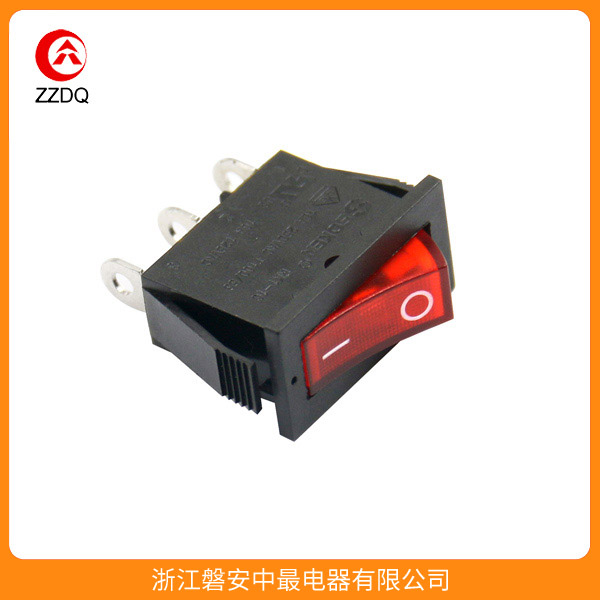

K3系列翘板开关

产品型号:

产品描述

Product Descriptions

安装容易,插入即可扣住各式公用电源开关的开孔。
Snaps onto the same cutout as many common power switches.
多种颜色的上盖及本体,还有多种样式端子脚。
Various colors,bodies,tope covers,and terminals.

主要应用

Typical Application

马达,电源供应器,发电机,变压器,测试仪器,延长线,电动工具,不断电供应器,运动器材,食物调理机。
Motors,power,Supplies,Generators,Transformers,Instrumentation,Power strips,Power tools,UPS,Health Equipments,Food Processor.

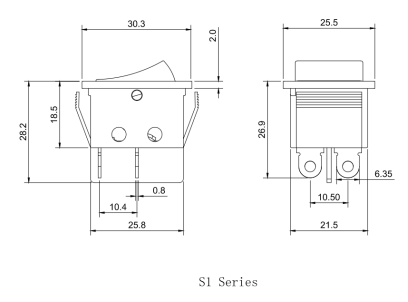

外观尺寸图

Out Dimensiongs


技术资料

Technical Datas

额定电流电压(Current and Voltage Ratings)3A-16A at 125/250VAC;50VDC
接触阻抗(Contact Resistance)≤80m
绝缘阻抗(Insulation Resistance)≥100m 500VDC
绝缘耐电压(Dielectric withstanding Voltage)1500VAC at 50/60 Hz for 60 seconds
电气寿命(Electrical Life)6000 cycles full rated current
使用温度范围(Operating temperature range)-10℃to+60℃
使用湿度(Ambient humidity used)≤85%RH
可焊性(Solder ability)260℃±5℃3±1S
